- 완전히 새롭게 디자인된 Swivel Head Sytem 탑재!
- New High Power MX700 Motor(470KV) 기본 사양!
- DS610 Cyclic Servo x3Set 기본 사양으로 포함!
- GP780 HeadLock Gyro 및 DS650 Digital Tail Servo 기본 사양으로 포함!

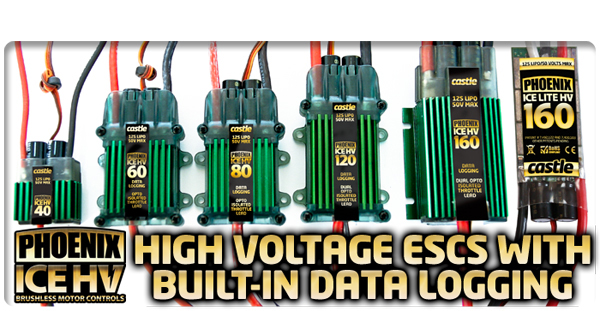

- Castle Creation ICE-II 120A HV 변속기 기본사양!
Next Generation
- 세계 최고의 성능을 자랑하는 한국 Gryphon사의 Quasar Hyper HV BEC 기본 사양!
- New CNC M1 Slant 헬리컬 메인/피니언 기어 기본 사양!(112T)
<Instruction>

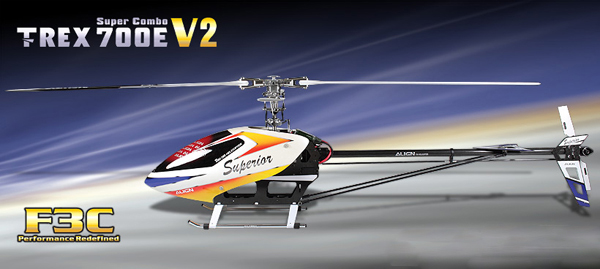

- T-REX 700E F3C V2

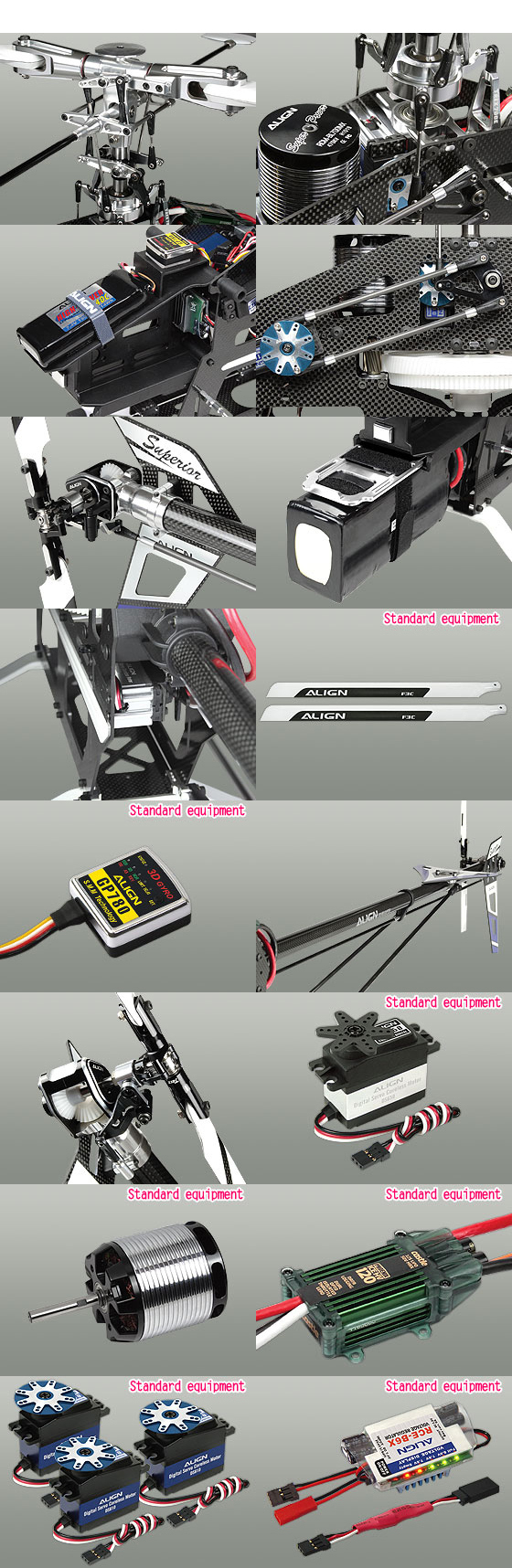

●Features
1.Brand new all metal high precision and high rigidity main blade assembly, providing 3 positive/negative deltas andnumerous Bell & Hiller mixing ratios.
2.Innovative sliding battery tray rails imbedded into the 3K side frames, with patented spring loaded latching mechanism, allowing for quick battery access as well as battery protection.
3.Precision CNC machined aluminum pieces including elevator servo mount, rudder servo mount, rudder control bell crank arm, vertical and horizontal fin mounts.
4.Top mounted motor base allowing blade drafts to cool the motor effectively.
5.Newly designed one piece stainless steel main gear hub to improve rotational stability.
6.Utilizes highest spec CNC modue-1 helical main gear, with highest load tolerance and lowest noise.
7.Motor mount consists of third bearing block to provide motor shaft support, effectively reduce torque induced shifts,and minimize gear striping issue.
8.Top mounted ESC platform to take advantage of main blades airflow for effective cooling.
9.Innovative sliding battery tray rails imbedded into 3K side frame, providing easy battery access and protection.
10.Brand new CNC machined metal tail gear box, with thicker side plates to increase rigidity. The more streamlined design also allows for simpler disassembly.
<Specification>
● Length: 1343mm
● Height: 424mm
● Width: 210mm
● Main Blade Length: 700mm
● Main Rotor Diameter: 1582mm
● Tail Rotor Diameter: 281mm
● Motor Drive Gear:12T
● Main Drive Gear:112T
● Autorotation Tail Drive Gear: 104T
● Tail Drive Gear: 24T
● Drive Gear Ratio: 1:9.33:4.33
● Weight(With Motor): 3230g
● Flying Weight: Approx. 5200g
- Accessories
●T-REX 700E F3C Kits Set X1
●Aluminum Tail Boom X1
●3K Carbon Fiber Tail Boom X1
●F3C 700mm Carbon fiber blades X1
●DS610 Digital servoX3 set
●DS650 Digital servo X1
●GP780 Head Lock Gyro X1
●700MX Brushless Motor(470KV) X1

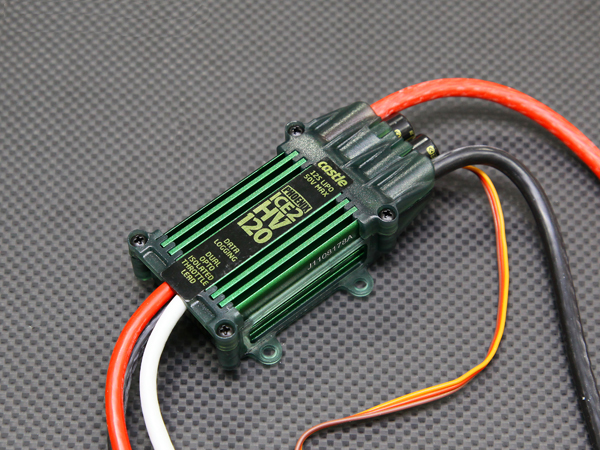

●Castle ICE HV 120 Brushless ESC X1
●Gryphon Quasar Hyper HV BEC X1
●105mm 3K Carbon Fiber Tail Blades X1 Set
<권장사양>
- 조종기 : Spektrum DX7S/8 or Higher
- 수신기 : 7 ch 이상 수신기
- 서보 : 제품에 포함되어 있습니다.
- Gyro : 제품에 포함되어 있습니다.
- Rotor : 제품에 포함되어 있습니다.
- 배터리 : PT-B60000N-6S(22.2V, 6,000mAh)
