AlignRC T-Rex700E 3GX V2 Super Combo(w/MX700 & Castle ICE2 HV 120A)
- When Size Matters!! -
전세계 90급 시장을 석권한 ALIGN사의 최강의 90급 전동 머신 T-Rex700E 3GX Version!
2008~2010년 전세계 52,000대라는 경이적인 판매고를 기록한 세계적인 베스트 셀러 T-Rex700 Nitro의 전동버젼!
전 파트가 커스텀 사양으로 구성된 호화판 90급 대형 전동헬기로 2세대 3GX 3축 자이로가 탑재된 Verion.2는 뛰어난 3D 기동력을 바탕으로한 우수한 기동성 및 완벽한 밸런싱, 높은 완성도, 그리고 믿을 수 없는 경량화(4.7kg/Full Loading!!)로 90급 헬기 시장의 절대 강자! 전동헬기 입니다.
T-Rex700E 3GX Super Combo에는 Castle Creation사의 신형 변속기 ICE-II 120A HV 타입과 세계최고의 성능을 가진 자랑스러운 국산 레귤레이터 - Gryphon Quasar Hyper Linear BEC(70V Max)가 기본사양으로 포함되어 있습니다.
MinChan Kim at ALIGN 3D Funfly Invitational 2011!
- 완전히 새롭게 디자인된 Flybarless System Head 탑재!
※하단 이미지중 B6T 레귤레이터와 레귤레이터 배터리는 포함되어 있지 않습니다.
- New High Power MX700 Motor(530KV) 기본 사양!
- DS610 Cyclic Servo x 3Set + DS650 Tail Servo 기본 사양으로 포함!
- 2세대 3축자이로로 각광받고 있는 신형 3GX 자이로 탑재!

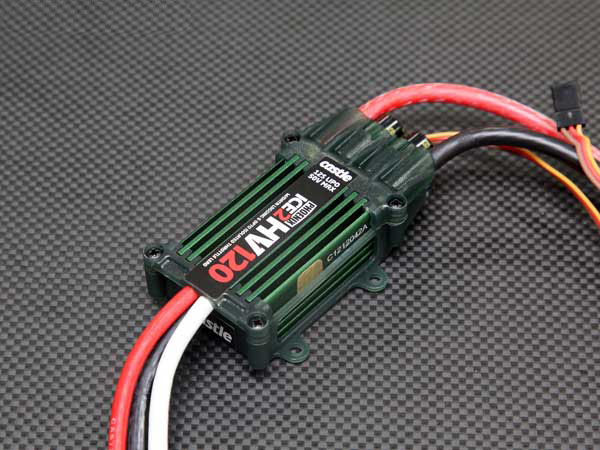

- Castle Creation ICE-II 120A HV 변속기 기본사양!

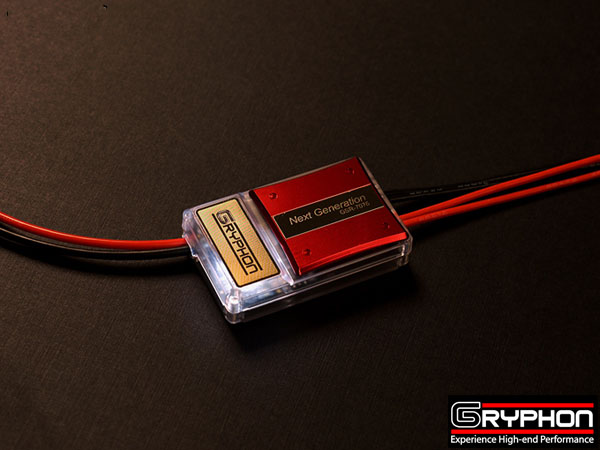

Next Generation
- 세계 최고의 성능을 자랑하는 한국 Gryphon사의 Quarsar Hyper HV BEC 기본 사양!
- New CNC M1 Slant 헬리컬 메인/피니언 기어 기본 사양!(112T)
<Instruction>
- 3GX Gyro Section
●Brand new redesigned 3GX represents a new generation of multi function flybarless system. The dramatically improved performance will create immediate impact on any enthusiasts.
●3GX is currently the smallest and lightest flybarless system on the market. Two ports to directly connect Spektrum and JR satellite receivers, along with full support of Futaba's S-BUS system.
●Based on the 3G FL760 manual setup process, the 3GX can be setup in a few minutes through a simple process. In addition, the 3GX can support all of the CCPM swashplate system currently on the market including 90, 120, 135, and 140 degrees swashplates.
●Graphical illustrated instruction on the computer setup software directs the user through a step by step setup process, allowing for quick setups without omitting any steps.
●Support Bluetooth connectivity. With the soon to be released Bluetooth connectivity kit, 3GX can be programmed wirelessly from a PC. Eventually there will also be smartphone apps allowing live adjustments to 3GX without powering down.
●With 3GX's built in Align RCE-G600 governor function, no external governor is needed to reduce electronic wire clutters.
●A library of pre-configured 3GX settings specifically available for T-Rex series of helicopters, allowing pilots to achieve the most optimal setup for their helicopters.
●Three levels of flight mode is available on the 3GX to provide different feels from beginners to advanced pilots.
●Custom parameters have been opened up in 3GX to allow pilots to fine tune numerous settings for swashplate and rudder. Settings export feature allows custom settings to be shared amongst friends.
●3GX utilizes brand new gyroscope sensors of the highest specifications when compared to other flybarless systems currently on the market, allowing it to be used under harsh conditions. Dual axis plus rudder sensor dramatically improves swashplate and rudder correction precision compared to last generation 3G. This is clearly noticeable in stable hover as well as highly aerobatic routines.
●Suitable for helicopter of all class from 200 to 700, glow engine or electric powered. The superior vibration resistant characteristic is evident even when mounted with harder double sided mounting tape.
●3GX utilizes 16 bit processor which is 4 times faster than previous generation, along with a completely re-written firmware. The result is a dramatic stability improvement from previous generation, with stability that rivals a flybarred helicopter, yet posses explosive agility.
●With built in pirouette compensation function, 3GX is able to stabilize the helicopter on a fixed point during pirouetting maneuvers. Pirouetting flips type of maneuvers are easily accomplished with precision.
●3GX's rudder control is similar to the high end GP-780 gyro in that rudder sensitivity is catered specifically for the helicopter's rudder response characteristics, allowing consistent rudder feel even under high speed conditions. This excellent control feel will allow pilot of all skill levels to experience the perfect integration between 3GX and helicopter.
●Additional peripherals planned for the 3GX includes 3-axis accelerometer, 3-axis magnetic compass, and GPS positioning system. While the commonly available position hold gyro system utilizes only 6 sensors, 3GX’s total of 10 sensors ensure positioning of helicopter with superior accuracy, providing the ultimate solution for aerial photography or other special purposes.
- T-REX 700E F3C V2
●Features
1.Newly designed metal main blade control system, with the detachable main rotor grip, provides high rigidity and superior control precision.
2.All metal main blade control system, resulting in enhanced durability and control precision.
3.Innovative sliding battery tray rails imbedded into the 3K side frames, with patented spring loaded latching mechanism, allowing for quick battery access as well as battery protection.
4.New lateral adjustable metal left/right control bellcrank arms and elevator control arms, enabling the most ideal endpoint travel adjustment for 3G flybarless as well as flybar system, while increasing servo resolution for improved control precision .
5.Utilizes highest spec CNC modue-1 helical main gear, with highest load tolerance and lowest noise.
6.Innovative sliding battery tray rails imbedded into the 3K side frames, allowing for quick battery access as well as battery protection .
7.Top mounted motor base bringing the motor's center of gravity closer to rotating disc, improving 3D agility and allowing blade drafts to cool the motor effectively .
8.Utilizing module 1 gear pitch for improved power sustainability of main gear.
9.Side frame attached third motor bearing block to ensure trueness of motor shaft at extreme radial force. Enhanced the motor efficiency and longer lifetime and decrease the sudden change for the gears gap to increase the strength of the main gear .
10.Top mounted ESC platform to take advantage of main blades airflow for effective cooling.
11.New lightweight H-shaped electric device retention system for protection, as well as ergonomically correct design to simplify operation .
12.Wide +/- 15 degree pitch range for superior 3D performance and explosive power.
13.Utilizes high efficiency tail drive shaft system.
Users must have a certain concept of security to operate the R/C helicopters.
Be sure to read and comply with related safety notes of instruction manual before flying.
<Specification>
- 3GX Gyro Section
●Operating Temperature:-10~60 degree
●X and Y axis Operating Angle Range:-300~+300 degree
●Z axis Operating Angle Range:-600~+600 degree
●Size:36.5x25.2x15.6 mm Size
●Weight11g Weight
●Supports Wide/Narrow Bandwidth Digital and brushless servos
●Spektrum and JR Satellite antennas support (Replaces original factory receiver)
●Futaba S.BUS system support
●Built in governor function
●Maximum working voltage:8.5V
●Compatible with 1024/2048 resolution Spektrum receivers
●Supports 90/120/135/140 CCPM swashplates
●Field setup without the use of a PC
●Compatible with 2 to 5 blades rotor heads
●Support up to 6 servos
●Automatic servo type recognization
- T-Rex700E EFL Section
● Length: 1328mm
● Height: 408mm
● Main Blade Length: 690mm
● Main Rotor Diameter: 1562mm
● Tail Rotor Diameter: 281mm
● Motor Drive Gear:12T
● Main Drive Gear:112T
● Autorotation Tail Drive Gear: 104T
● Tail Drive Gear: 24T
● Drive Gear Ratio: 1:9.33:4.33
● Weight(With Motor): 2830g
● Flying Weight: Approx. 4700g
- Accessories
●T-REX 700E V2 3GX Kits Set X1
●Aluminum Tail Boom X1
●3K Carbon Fiber Tail Boom X1
●690 3G Carbon fiber blades X1
●DS610 Digital servoX3 set
●DS650 Digital servo X1
●3GX Flybarless System X1 set
●700MX Brushless Motor(530KV) X1
●Castle ICE2 HV 120 Brushless ESC X1
●105mm 3K Carbon Fiber Tail Blades X1 Set
<권장사양>
- 조종기 : Spektrum DX7S/8 or Higher
- 수신기 : 7 ch 이상 수신기
- 서보 : 제품에 포함되어 있습니다.
- Gyro : 제품에 포함되어 있습니다.
- Rotor : 제품에 포함되어 있습니다.
- 배터리 : PT-B4600N-6S~PT-B5200M-6S(22.2V, 4,600mAh~5,200mAh)
|
