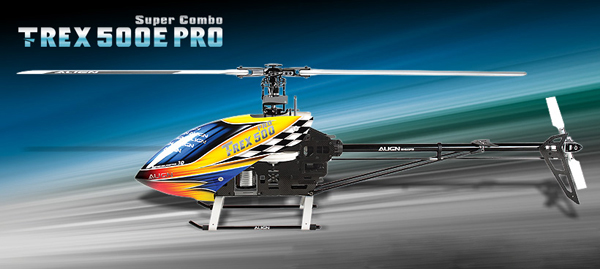

ALIGN사의 5세대 T-Rex500E Pro Edition은 헤드가 스위벨 타입으로 변경된 플라이바 타입 기체로서 모든 파트를 재 설계, 사용자 편의성을 극대화 한 500급 전동헬기 입니다.
Special Thanks to Alan Szabo Jr!

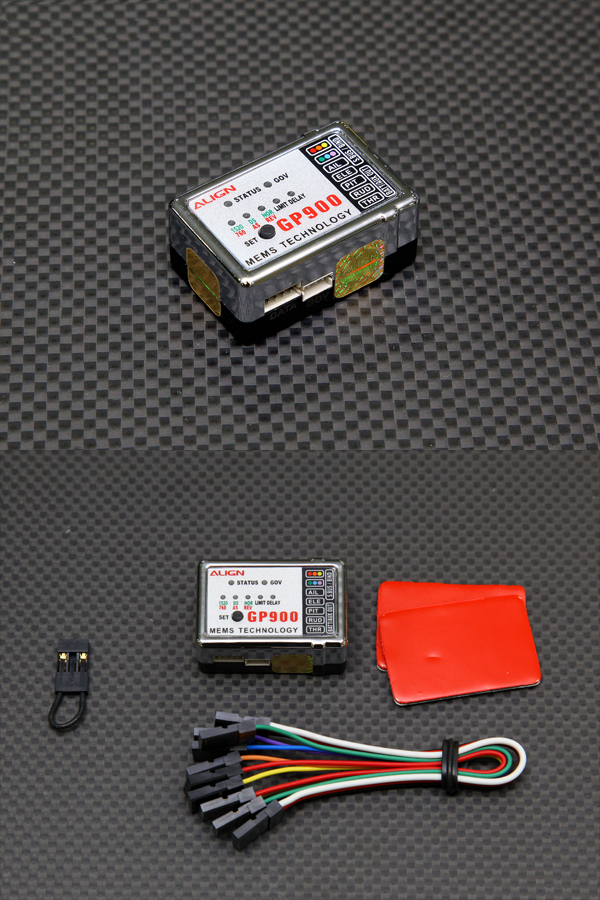

- 4세대 1축자이로 - GP900 자이로 탑재.
Spartan DS760과 동일한 MEMS 방식의 압전소자를 채택, 우수한 Stability 특성 및 엔진기와 같이 진동이 극심한 Nitro 기체에도 최적화 된 자이로.
Data Port 탑재로 향후 펌웨어 업그레이드 및 거버너 컨트롤러 내장으로 별매 센서 장착시 통합 거버너(G600과 동일한 사양)로도 동작합니다.
아울러 Futaba S-Bus 회로를 탑재, 후타바 수신기와 자이로 사이에 병목현상을 제거한 고속 통신이 가능하며, 현재 시장의 대세인 SPEKTRUM DSM-X와 100% 호환!
SPEKTRUM용 위성안테나 장착시 GP900 자이로는 SPEKTRUM 수신기로 동작, 별도의 수신기가 필요없는 매우 심플한 구조로 SPEKTURM의 최대 장점인 Latency 11ms를 완벽하게 구현 합니다.
주의 : 국내 정식으로 수입되는 ALIGN사의 모든 Motor, ESC, Servo, Gyro는 전수 검사 후 출하되며 파쇄형 홀로그램 스티커가 붙어서 출하됩니다.
홀로그램 스티커가 없는 경우 A/S가 되지 않거나 유상수리 처리되므로 이점 양지말씀 드립니다.
<Instruction>
- GP900 1 Axix Gyro Section
* 컨텐츠 준비중입니다.
- T-Rex500E Pro Section
●Preface
1.Following the design and manufacturing excellence of Align, T-Rex 500E Pro is a new generation of 500 class helicopter with exclusive innovations.
2.Utilizes new style 500 rotor head, with 3 sets of positive/negative deltas and numerous Bell/Hiller mixing ratios to provide both stability and agility, improving the stability and controllability of the helicopter. Composite technology is used throughout the side frames which cleverly strengthen the weak areas, and eliminated servo mounting nuts to simplify maintenance at the same time. Removable gyro mounting platform and receiver mount are more rigid and ergonomically friendly. Rudder servo is mounted inside the frame for more central CG point to improve 3D performance, as well as minimize crash damage to the servo. Superior quality tail gear box, thicker stronger side plates around tail drive crown gear. Newly designed dual bearinged tail blade grips for zero slop rudder control precision and ultimate tail locking performance. At the heart of the helicopter, the high efficiency Align MX series motor provide continuous power.
3.T-Rex 500E Pro features high stability, excellent gust resistance, superior control feel, and being 500 is just the right size/price, it is the ultimate choice for enthusiasts.
●Features
1.New style 500 rotor head, with 3 sets of positive/negative deltas and numerous Bell/Hiller mixing ratios.
2.Unique carbon composite technology which effectively strengthen the weak areas and simplify electronics installation.
3.Servos can be mounted directly onto frame without mounting nuts.
4.Rear in-frame rudder servo mount design for centralize 3G for best 3D performance.
5.Equipped with MX series high efficiency brushless motor, with heatsink style casing and embedded fan to dramatically improve cooling and increase power output.
6.Unique fast release gyro and receiver mount design for fast removal and sturdy attachment.
7.Uses high precision slant tooth (helical) main gear, with higher load sustainability and lower noise output.
8.Brand new tail gear box with higher material quality and easy maintenance.
9.Newly designed dual bearinged tail blade grips for zero slop rudder control precision and ultimate tail locking performance.
10.Highly efficient shaft driven tail system which effectively reduce power loss found on belt driven system, and at the same time increase performance during flight.
11.Brand new 4mm carbon rudder control rod and metal rudder pitch bell crank to further improve the rudder locking effect and controllability.
12.New style battery mounting platform to strengthen frame as well as provide mount for electronic speed controller.
13.New style lower CG landing gear.
14.Newly styled aerodynamically canopy for the ultimate fit, making the helicopter stand out.
<Specification>
- 3GX Gyro Section
● 컨텐츠 준비중입니다.
- T-Rex500 EFL Pro Section
● Length: 868mm
● Height: 308mm
● Width: 161mm
● Main Blade Length: 425mm
● Main Rotor Diameter: 978mm
● Tail Rotor Diameter: 206mm
● Motor Drive Gear:12T
● Main Drive Gear:134T
● Autorotation Tail Drive Gear: 145T
● Tail Drive Gear: 36T
● Drive Gear Ratio: 1:11.17:4.03
● Weight(With Motor): 1295g

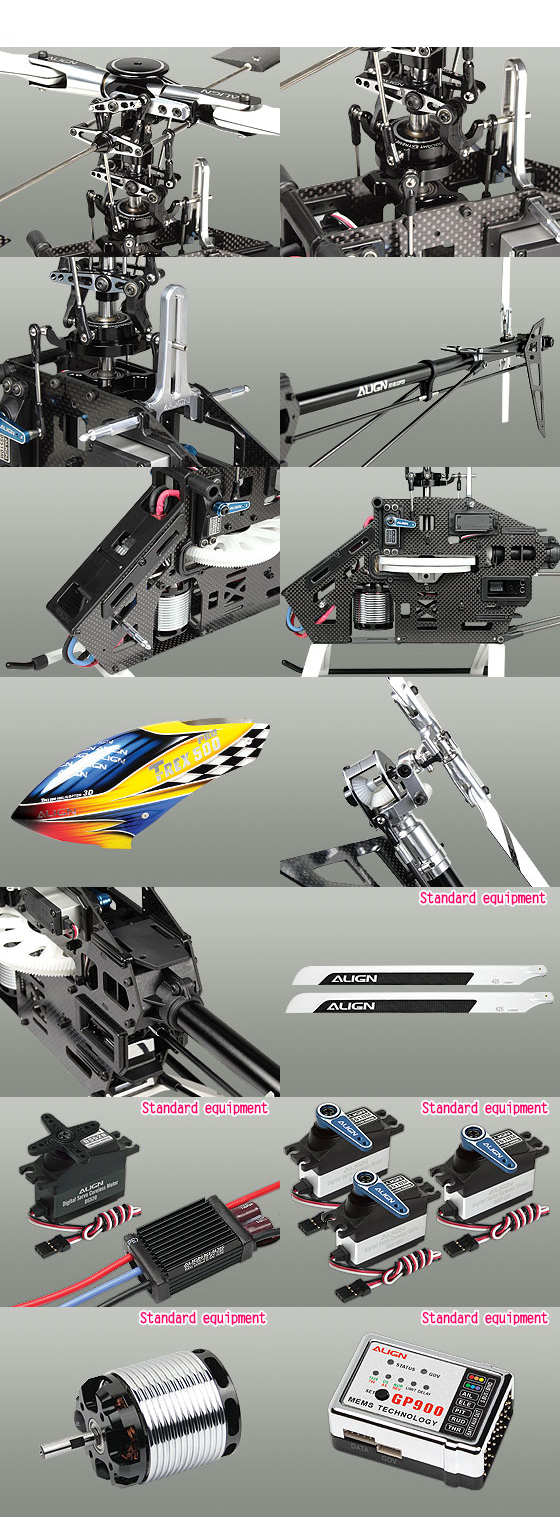

●T-REX 500EFL PRO Kits Set X1
●Aluminum Tail Boom X1
●425D 3G Carbon fiber blades X1
●500MX Brushless Motor(1600KV) X1
●DS510M Digital servoX3
●DS520 Digital servo X1
●3GX Flybarless System X1
●RCE-BL70G Brushless ESC X1
<권장사양>
- 조종기 : Spektrum DX7S/8 or Higher
- 수신기 : 7 ch 이상 수신기
- 서보 : 제품에 포함되어 있습니다.
- 3GX Gyro : 제품에 포함되어 있습니다.
- Rotor : 제품에 포함되어 있습니다.
- 배터리 : PT-B2600N-SP45(6S) 또는 PT-B3300N-SP45(6S)
